扫一扫微信 高效过滤器Products
当前位置:
产品名称:

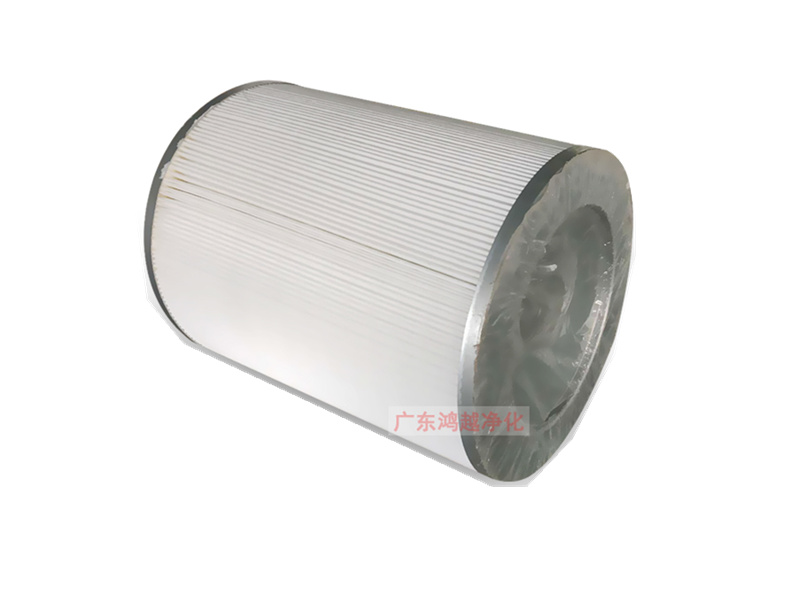

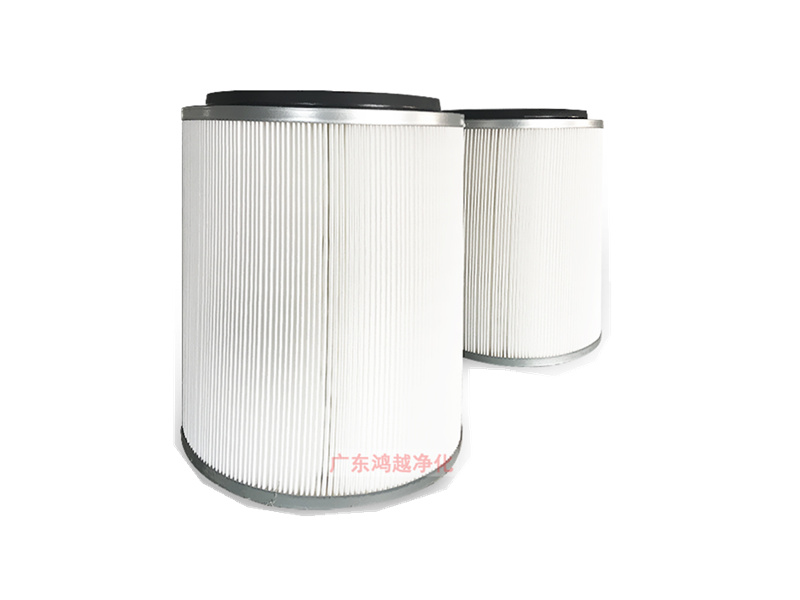

圆形高效过滤器
产品规格:
圆形高效过滤器320*600
产品功能:
●采用100%聚脂长纤维●精度高,可处理超细粉尘的回收●风量大,可处理过滤风速大、含尘量高的场合●滤芯端盖与滤材的粘接,采用进口高强度环氧树脂。●耐高温、耐磨、耐酸性;●密封圈材质极富有弹性、耐磨、防止漏气及粉末兼容;●可用水清洗,降低成本
详细描述Description
圆形高效过滤器也称普通粉末回收过滤器(普通聚酯纤维)
Ordinary powder recovering filters(average recovery of filter)
特点:features
- 采用100%聚脂长纤维
- 精度高,可处理超细粉尘的回收
- 风量大,可处理过滤风速大、含尘量高的场合
- 滤芯端盖与滤材的粘接,采用进口高强度环氧树脂。
- 耐高温、耐磨、耐酸性;
- 密封圈材质极富有弹性、耐磨、防止漏气及粉末兼容;
- 可用水清洗,降低成本
- Adopting 100% polyester fibers
- High precision, and can handle the recovery of ultrafine powder
- Air filter, can handle the high speed, HanChenLiang occasion
- The filter cores cover and adhesive, imported high strength epoxy resin.
- High temperature resistance, abrasion, acidic,
- Sealing material extremely rich elasticity, wear-resisting,
prevent leakage and powder compatible,
- Can use clean, reduce cost
构成材料及运行条件
Materials and operating conditions
- 端盖:镀铝锌板
- Cover: aluminium zinc plate
- 密封物:聚胺脂胶
- Sealant:Gel-glue
- 密封条:醋酸乙酯
- Gasket:EVA
- 滤料:高密度聚酯纤维
- Filter media:High density of polyester fiber
- 使用最高温度、湿度:80℃、80%
- Use the highest temperature, humidity:80℃、80
型号尺寸及其他参数
Standard specification
型号 Model | 内径diameter(mm) | 外径diameter(mm) | 高度height(mm) | 阻力resistance (Pa) | 捕集效率Efficiency (%) | 风量 air (m3/h) | 反吹气压The blow (kg) |
HYF3260 | 320 | 220 | 600 | 50 | 1μ 56.2 2~3μ 80.5 3~5μ 98.3 8μ 99.8
| 1200 | 6-8 |
HYF3266 | 320 | 220 | 660 | 50 | 1300 | 6-8 | |
HYF3290 | 320 | 220 | 900 | 50 | 1800 | 6-8 | |
HYF3560 | 350 | 210 | 600 | 50 | 1600 | 6-8 | |
HYF2860 | 280 | 180 | 600 | 50 | 1100 | 6-8 |
*可根据用户要求定制不同规格型号的普通粉末回收过滤器
According to user requirements to customize different specifications and types of ordinary powder recovering filters
