耐高温高效过滤器
详细描述Description

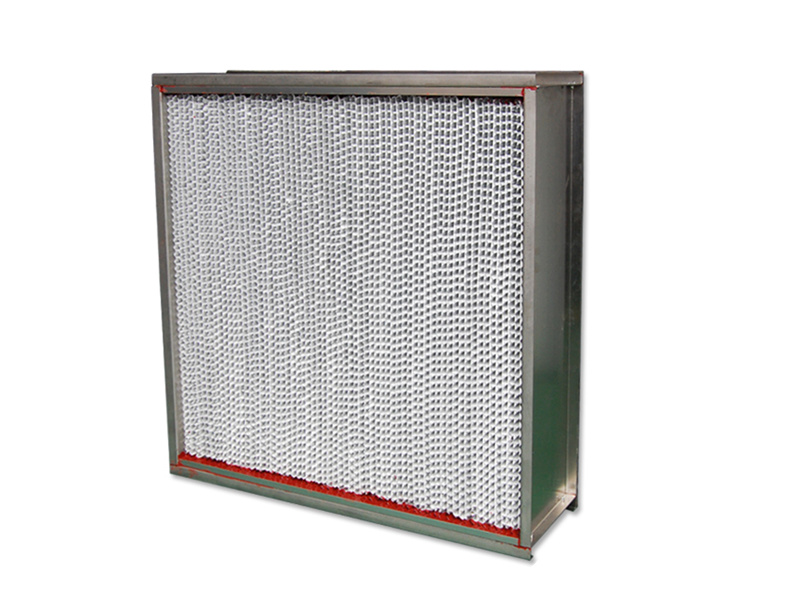

耐高温高效空气过滤器
High temperature resistant efficient air filter
特点Features
●阻力低、容尘量大
●耐高温性能好
●主要用于超净烘箱等要求高温空气净化设备和
系统.
●Low resistance and large amount of dust
●High temperature resistant performance is good
●Mainly used in high temperature oven laminar
air purification equipment and systems.
构成材料及运行条件Materials and operating conditions
●框材：不锈钢外框 ●密封物：专用耐高温密封胶
●External frane：Stainless steel frame ●Sealant：High temperature resistant sealant
●分隔物：铝箔 ●滤料：玻纤滤纸
●Filter media：Aluminum foil ●Filter media：Glass fiber
●使用最高温度、湿度：250~350℃、80%
●Use the highest temperature, humidity：250~350℃、80%
型号尺寸及其他参数(Standard specification)
型号 model | 外形尺寸 Outside dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 容尘量 Dust capacity (g) |
HY-NGX-10J1 | 484×484×220 | 1000 | ≤200 | ≥99.99 | 600 |
HY-NGX-10J | 610×610×150 | 1000 | ≤200 | ≥99.99 | 350 |
HY-NGX-16J | 630×630×220 | 1600 | ≤200 | ≥99.99 | 400 |
HY-NGX-22J | 610×610×292 | 2200 | ≤200 | ≥99.99 | 600 |
*可根据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
